Professional Equipment for Water Treatment

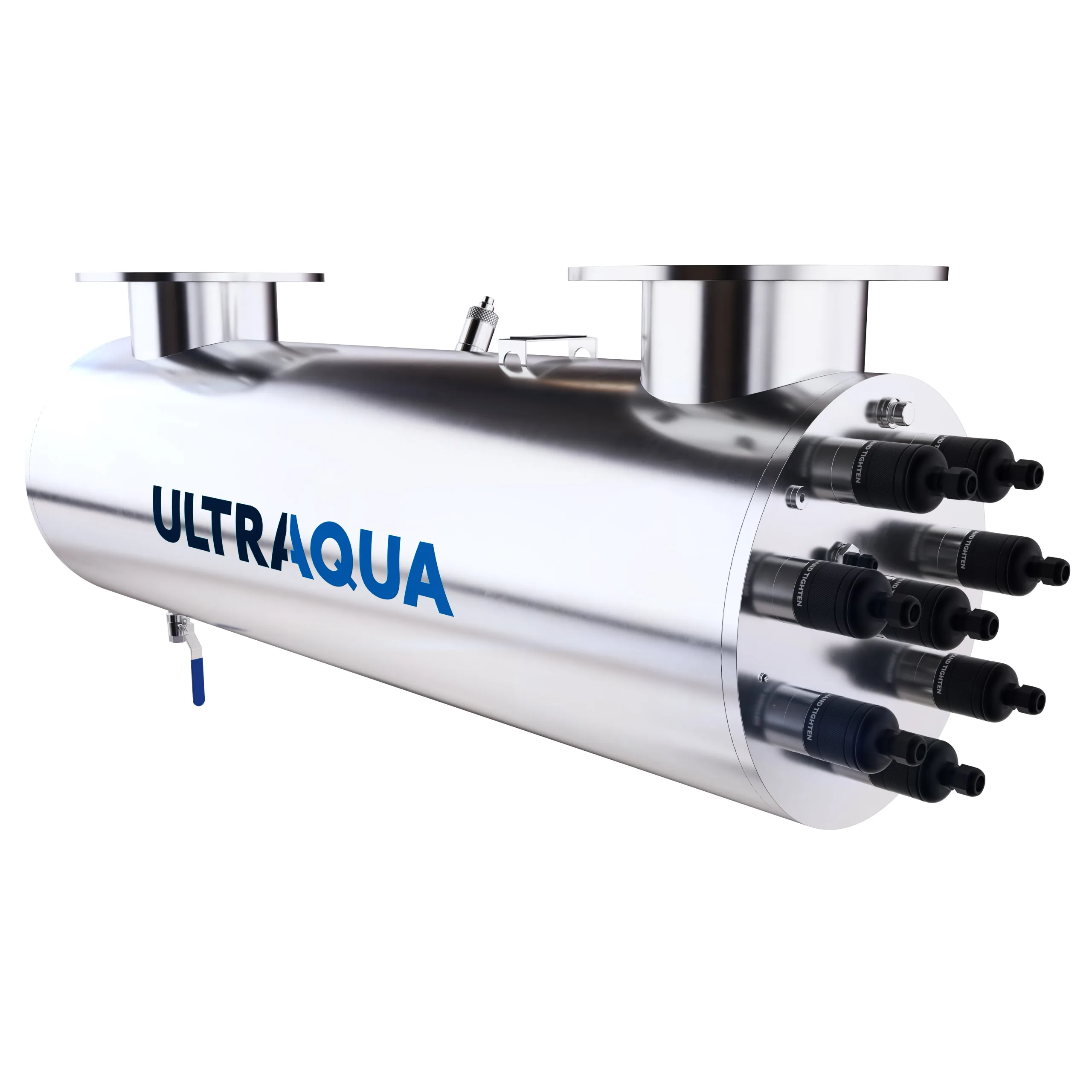

UVGuard Cleaner

The ULTRAUAQUA Ultrawiper System is designed to prevent the reduction of UV radiation intensity, thereby enhancing the efficiency of UV disinfection systems. This innovative system automatically cleans the external surfaces of quartz sleeves from contaminants, biological residues, and deposits that accumulate over time. Operating on the principle of a mechanical cleaner, the Ultrawiper moves around the quartz sleeves at intervals determined by the PLC (ULTRATOUCH™ control cabinet), minimizing the need for manual intervention.

The cleaning rings and all components of the cleaning mechanism that come into contact with gas or water are made from a special PTFE material, resistant to UV radiation, water, and chemicals. Operators can adjust the operation time, frequency, and speed of cleaning via the HMI screen. Maintaining the functionality of UV sensors and lamps during the cleaning cycle is critical.

The Ultrawiper System is designed to uphold the maximum protection class IP68 of the UV reactor, making it especially important for waters with high levels of contamination.

Specifications
• Model: ULTRAUAQUA Ultrawiper System
• Function: Automatic cleaning of quartz sleeves in UV disinfection systems
• Operation Principle: Mechanical cleaner moving around quartz sleeves
• Control: Intervals determined by PLC (ULTRATOUCH™ control cabinet)
• Material: Cleaning rings and components made from UV-resistant PTFE
• Adjustability: Operators can set operation time, frequency, and speed via HMI
• Protection Class: Maintains maximum IP68 rating for UV reactor
• Application: Ideal for waters with high contamination levels
• Manufacturer: ULTRAUAQUA
